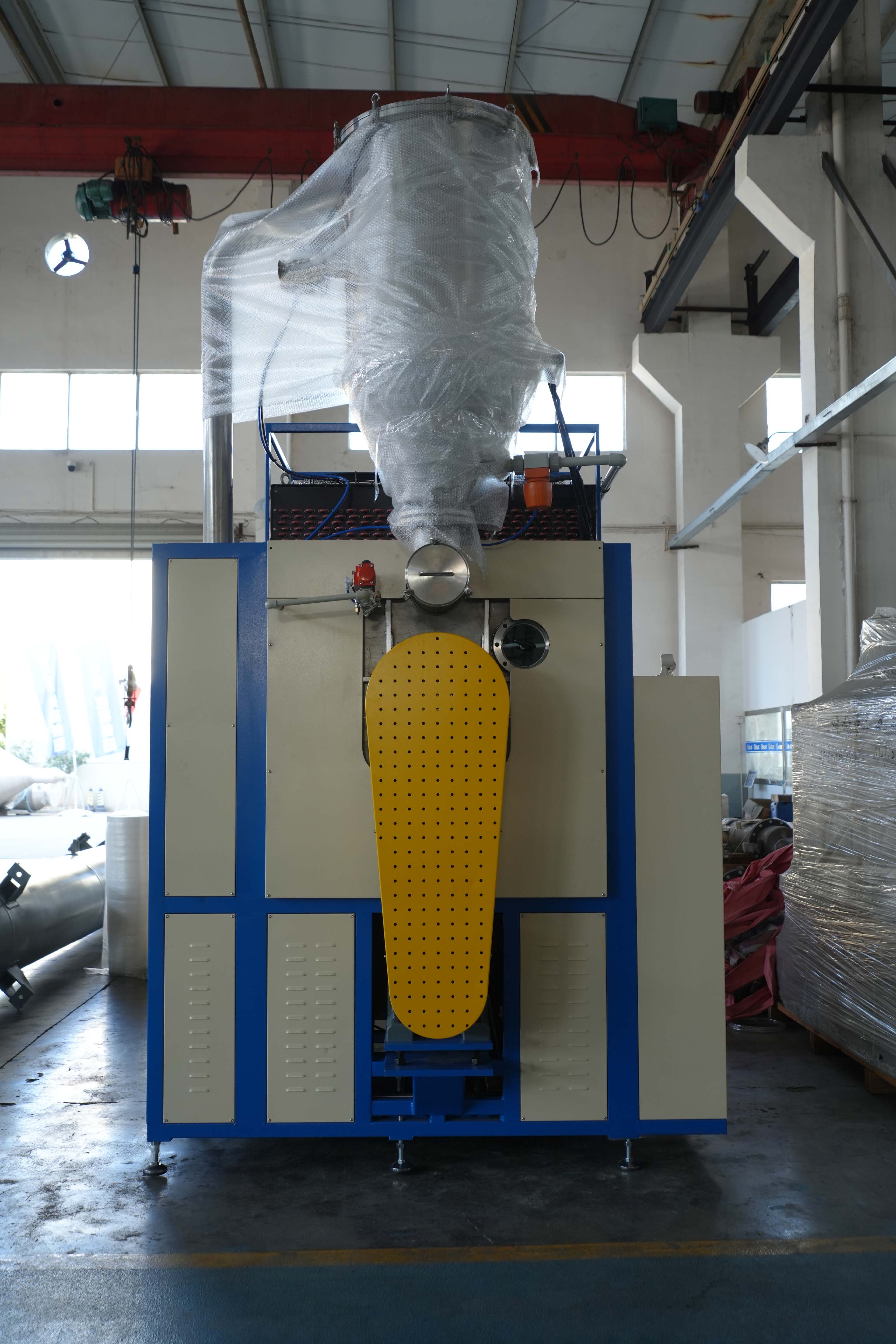

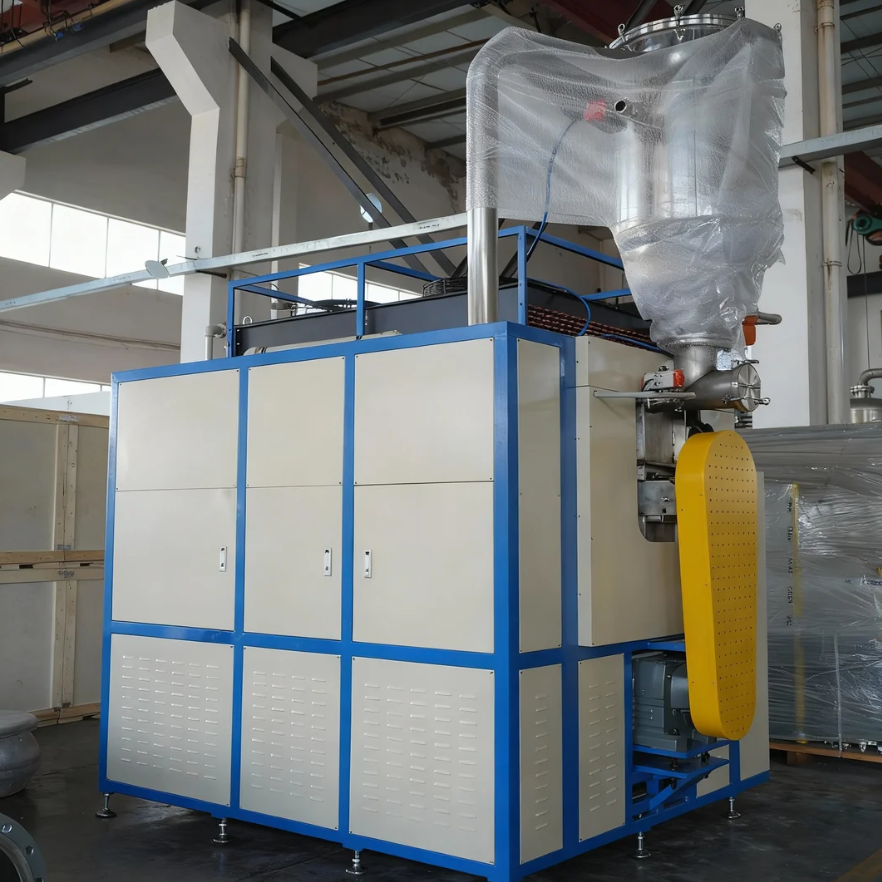

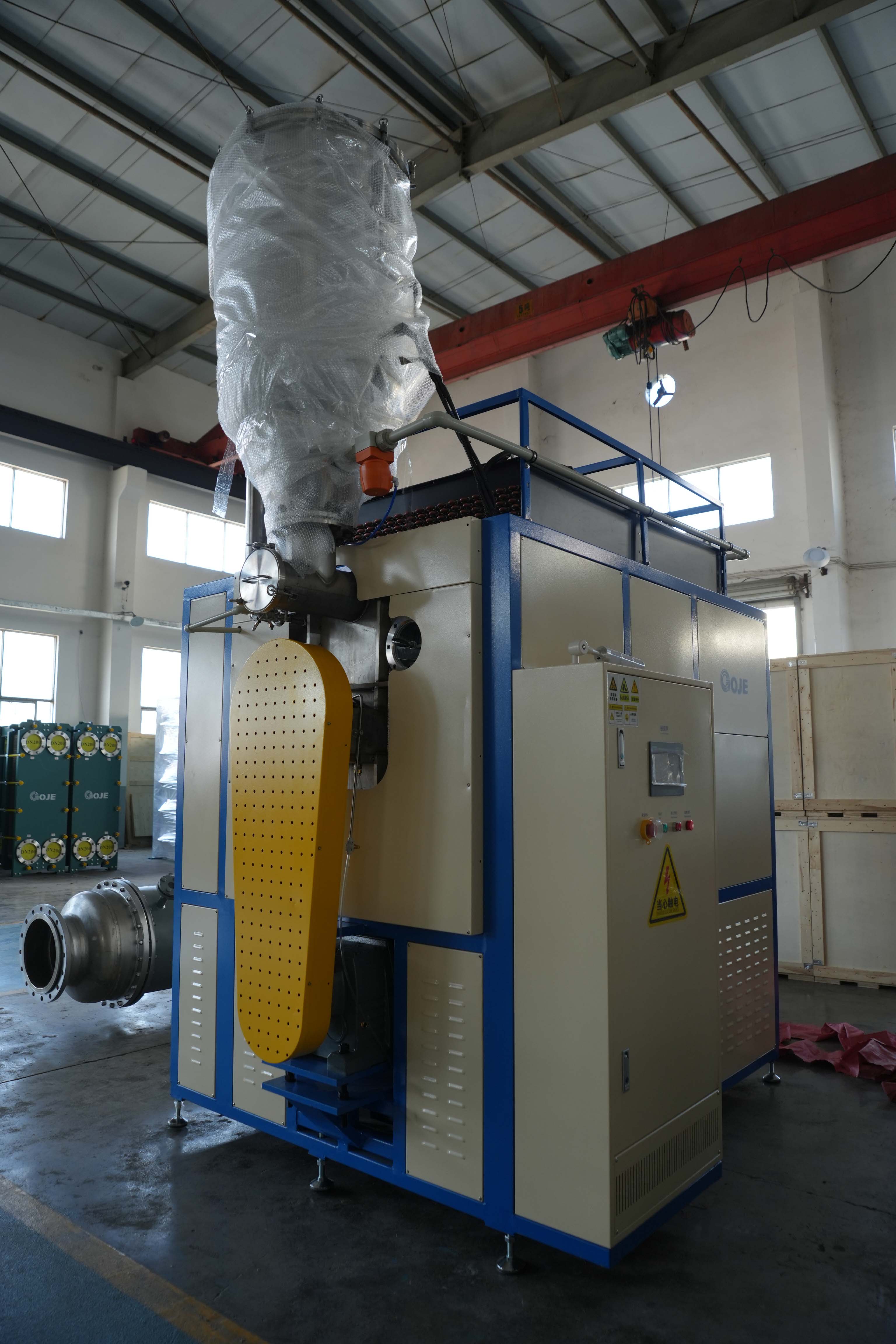

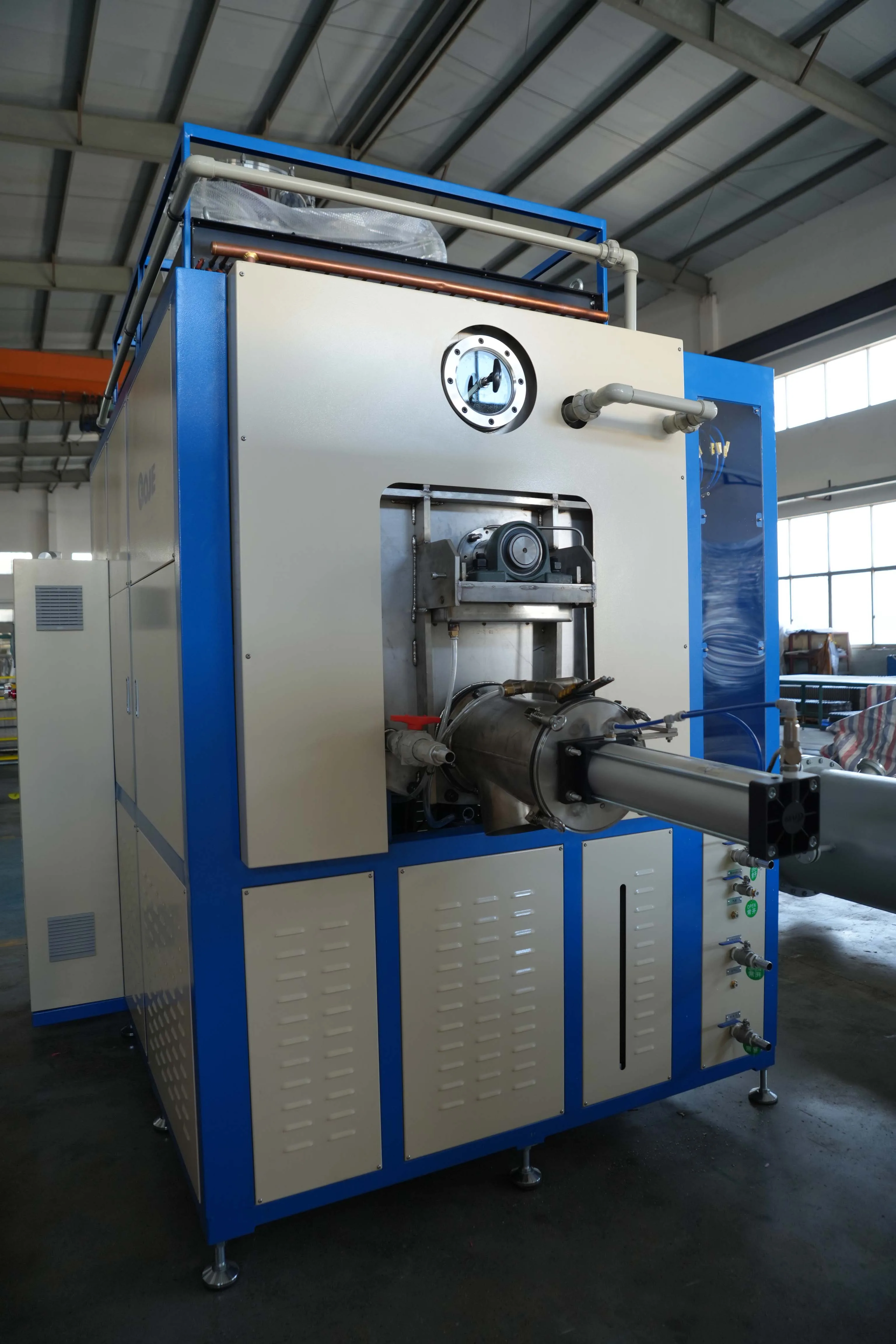

Low-temperature evaporation concentrator

Low-temperature evaporation concentrator

In fields such as industrial wastewater treatment, high-salt waste liquid concentration, and biopharmaceutical purification, low-temperature evaporation technology, with its highly efficient, energy-saving, and environmentally friendly characteristics, has gradually become the mainstream choice in the industry.

Inquire

Working principle
Product Overview
FAQ

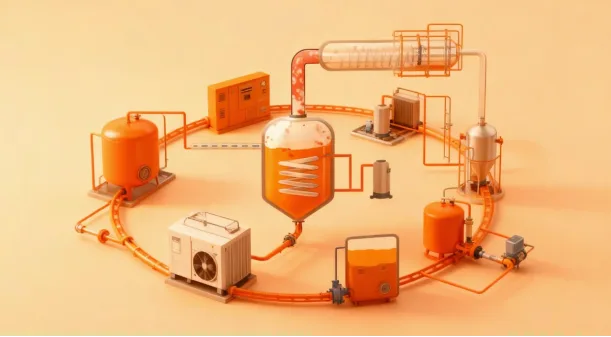

Working principle

The equipment utilizes a vacuum system or a heat pump system to significantly lower the boiling point of the materials, allowing them to evaporate rapidly in a low-temperature environment.
The steam is condensed and recovered as condensate, while the concentrated liquid gradually increases its concentration in the concentrator, ultimately achieving a continuous and stable low-temperature concentration effect.

The advantages of low-temperature evaporation lie in:

Retain the nutrients without being destroyed
Reduce thermal degradation and color change
Lower energy consumption and higher safety
Key Features & Benefits

True low-temperature concentration (30-65°C)
To prevent high temperatures from destroying the active ingredients, it is particularly suitable for heat-sensitive materials.

High efficiency and energy saving
Low-temperature evaporation technology saves 40 to 70% of energy compared with traditional evaporation.
Optional:

Vacuum evaporation
Low-temperature evaporation of heat pump
Multi-effect energy-saving solution

Better product quality
Retain the color, fragrance and active ingredients
The concentration effect is stable.
The final concentration is controllable (such as 1.2-1.4 density)

All SUS304 / SUS316L material:
Complies with food and pharmaceutical grade usage standards.
Material certificates and welding records can be provided.

Automatic control
PLC + touch screen one-click operation
It has automatic protection functions for temperature, liquid level and pressure

Can operate continuously or intermittently:
Suitable for production requirements of different scales.

Product Overview

The low-temperature evaporation concentrator is an energy-saving evaporation equipment specially designed for heat-sensitive materials, low-temperature processes, and high-quality concentration requirements.

The system achieves rapid evaporation and concentration of materials at 30-65 °C through low-temperature evaporation technology, maximizing the retention of active components in the materials while significantly reducing energy consumption

Technical parameters

Project	Parameter range (customizable
Evaporation volume	50–5000 L/H
Evaporation temperature	30-65°C (Low temperature)
Heating method	Heat pump/steam/electric heating
Vacuum degree	-0.06 to -0.095 MPa
Material	SUS304 / SUS316L
Energy consumption	Save 40% to 70% of energy
Control system	PLC+HMI automatic control

FAQ

Which materials are suitable for low-temperature evaporation concentrators?
+

It is suitable for heat-sensitive materials, plant extracts, fruit juices, biological fermentation liquids, medicinal liquids, chemical solutions and other products that require low-temperature concentration.
What is the concentration temperature of the equipment?
+

It usually operates at 30-65°C, effectively protecting nutrients and active substances from being destroyed.
Can the evaporation rate be customized?
+

Sure. We support customized production with a capacity ranging from 50L/H to 5000L/H or even higher.
Is the equipment energy-efficient?
+

Extremely energy-efficient. Low-temperature evaporation technology saves 40 to 70% of energy consumption compared with traditional evaporation. Optional heat pump and vacuum system are available for more significant energy-saving effects.
What material is the equipment made of? Does it comply with food/drug standards?
+

All parts in contact with materials can be selected as SUS304 / SUS316L, fully complying with the hygiene and safety standards of the food and pharmaceutical industries.
