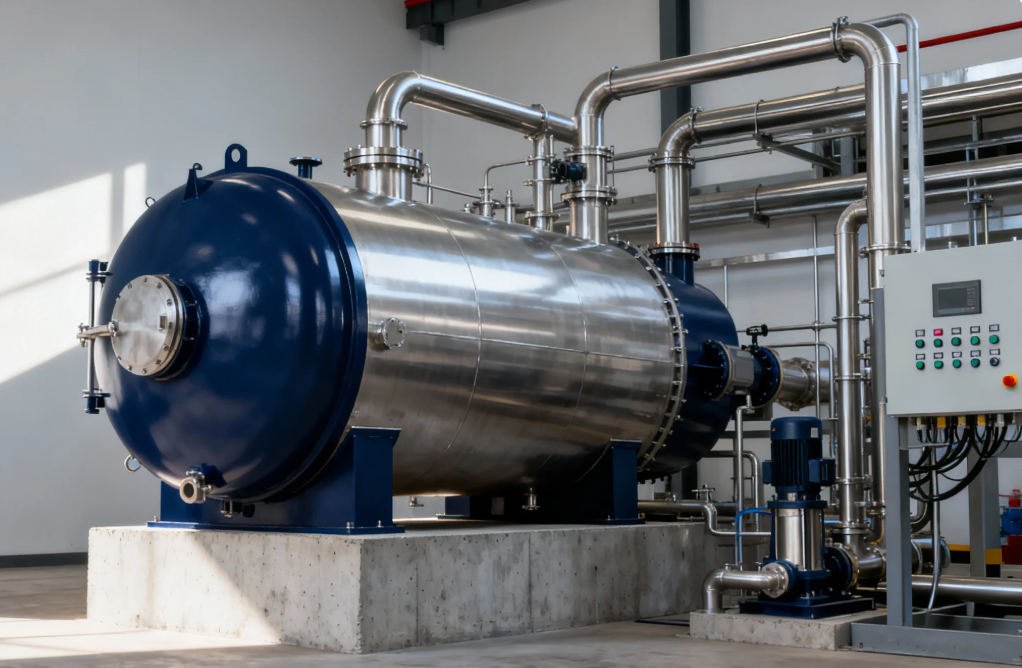

Horizontal crystallization reactor

Horizontal crystallization kettles are suitable for various crystallization processes: cooling crystallization, evaporation crystallization, vacuum cooling crystallization, continuous or intermittent crystallization processes.

Inquire

Product Description
Application industries and typical materials
FAQ

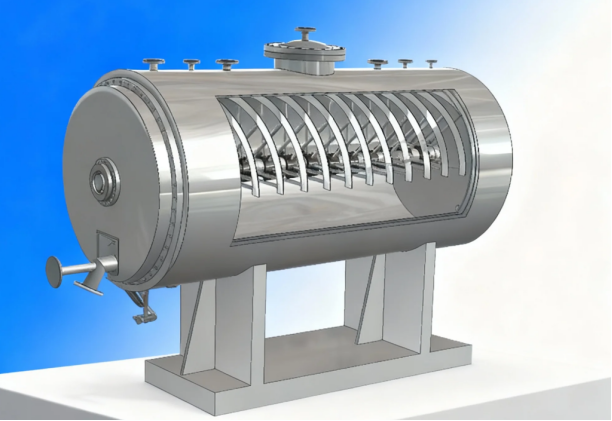

What is a horizontal crystallization kettle?

A horizontal crystallization kettle is a device used to bring solutions to a supersaturated state and promote crystallization. Compared with a vertical crystallization kettle, it has:

Larger heat exchange area (horizontal layout, higher cooling efficiency)

The residence time of the crystal is more stable

It is more suitable for materials that are prone to sedimentation of crystals or have high requirements for stirring

It is more suitable for continuous industrial production

Typical application materials: sodium chloride, potassium chloride, nitrate, sulfate, organic salts, intermediates, etc.

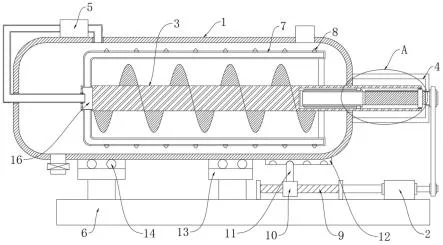

Working process of horizontal crystallization reactor

The materials are fed into the horizontal reactor body
Start stirring to keep the solution uniform
Start jacket cooling or coil cooling
The temperature gradually decreases → the solution enters a supersaturated state
Nucleus formation → crystal growth
After reaching the target particle size, the crystal slurry is discharged
Enter the centrifuge for dehydration
The mother liquor can be returned to the system for further processing
Applicable to:
✔ Cooling crystallization ✔ Vacuum cooling crystallization ✔ Evaporation-crystallization combined process

Application industries and typical materials

Chemical industry

Sodium chloride, potassium chloride, nitrate, sulfate, organic salt, chemical intermediate

Pharmaceutical industry

Drug intermediates, crystals of active pharmaceutical ingredients

Salt chemical industry

Refined salt, industrial salt, and concentrated seawater salt treatment

Zero Discharge of Wastewater (ZLD）

Crystallization treatment of high-salt wastewater, precipitation and separation of metal ions

Technical parameters

Volume	500L - 30,000L
Material	304/316L/TA2 / Hastelloy
Stirring form	Anchor type/frame type/propeller type/helical ribbon type
Stirring speed	5-85 rpm, variable frequency adjustable
Crystallization method	Cooling/vacuum cooling
Temperature range	-20°C to 200°C
Pressure range	Atmospheric pressure/vacuum
Heat exchange method	Jacket/inner coil

FAQ

What are the differences between horizontal and vertical crystallization kettles?
+

Horizontal type is more suitable for materials with high viscosity, fast sedimentation and the need for stronger stirring, and it has better control over crystal particle size.
Can it be used for highly corrosive crystalline materials?
+

Sure. We offer materials such as TA2 titanium, 2205, and Hastelloy.
Can it be customized according to the customer's working conditions?
+

All parameters can be customized to non-standard specifications, including volume, material, stirring method, jacket structure, etc.
Can an evaporator be matched?
+

Supports combination with MVR, forced circulation evaporators and triple-effect evaporators.
